RLB 27
€1.095,00
The RLB 20 lifting cushion is a vulcanized lifting cushion. The dimensions are: 600 x 600 x 25mm, the weight is 9.8 KG. The maximum lifting capacity at 8 Bar is 270 KN or about 27.5 Ton and the maximum lifting height is 360mm.
Description

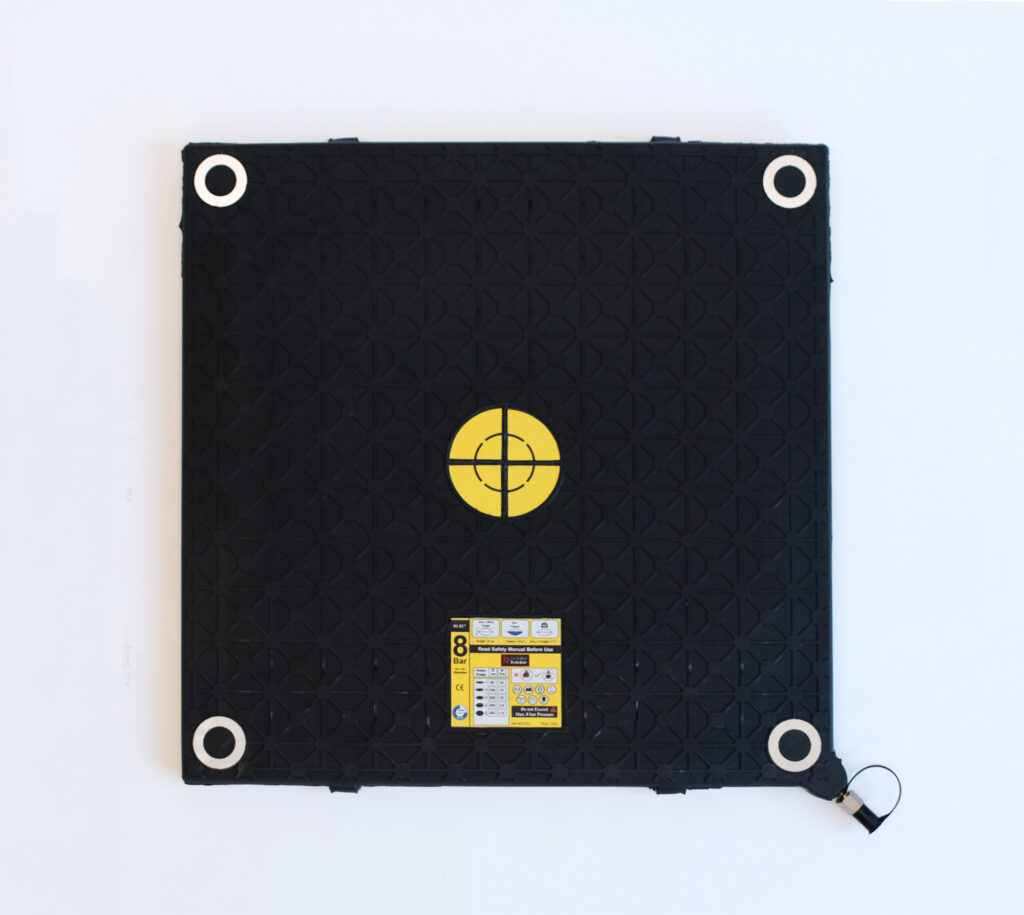

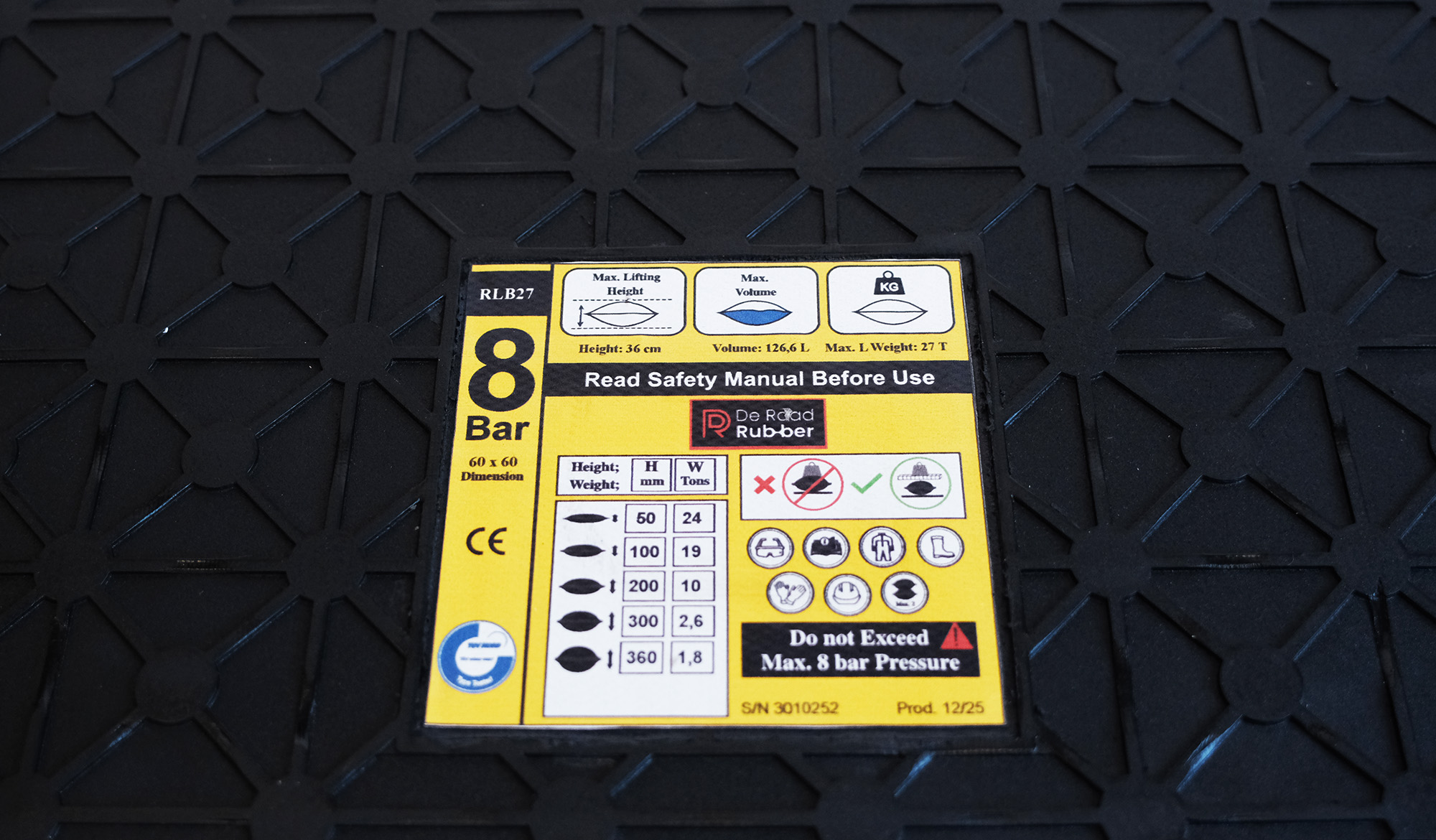

The RLB 27 lifting cushion is a vulcanized lifting cushion. The dimensions are: 600 x 600 x 25mm, the weight is 9.8 KG. The maximum lifting capacity at 8 Bar is 270 KN or about 27.5 Ton and the maximum lifting height is 360mm. Please note that the lifting capacity decreases with increasing lifting height, see the graph in the brochure. The brochure can be found at https://www.hefkussens.nl/vulcanised/.
